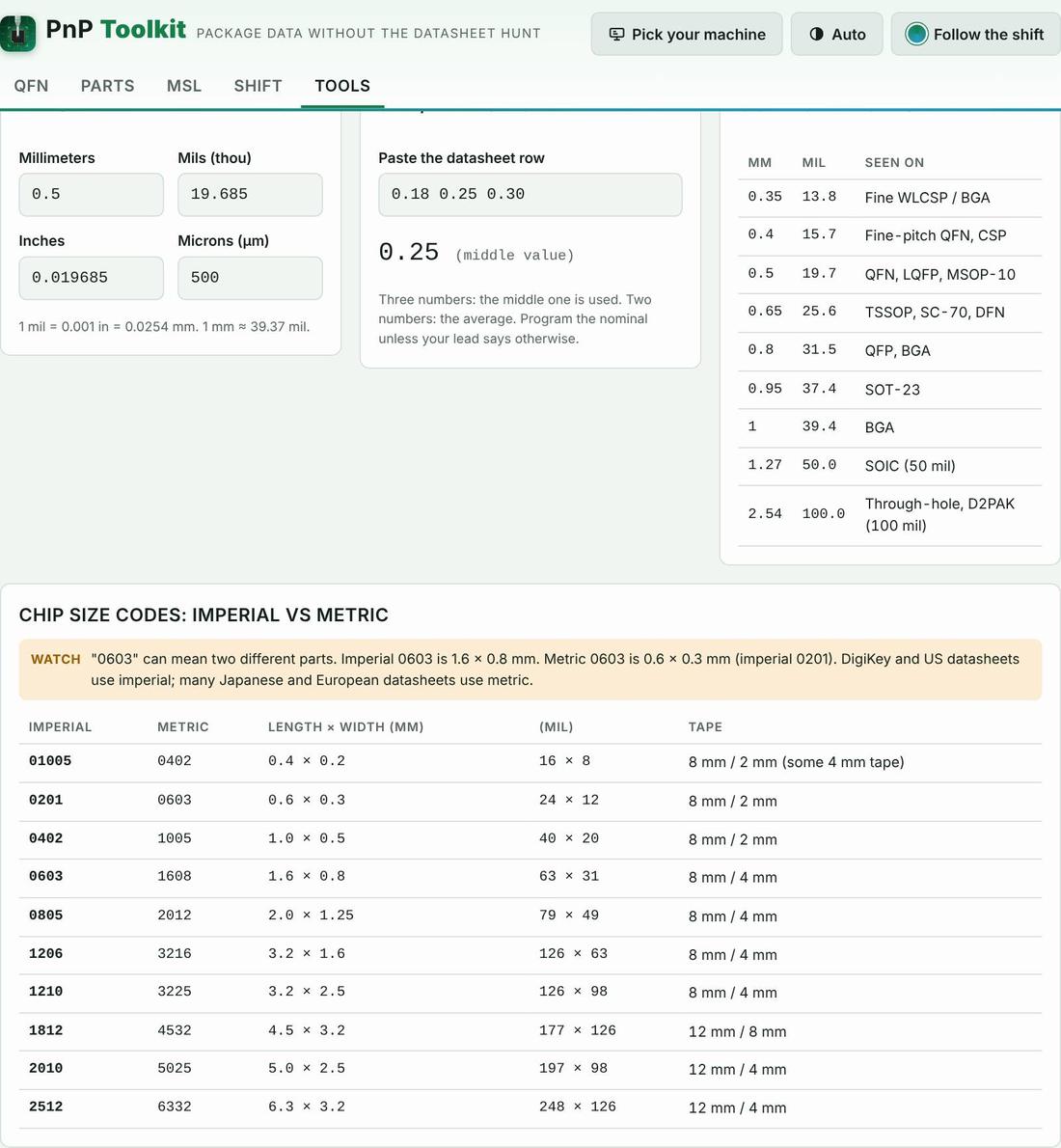

Unit converters and size codes

Millimeters, mils, inches and microns side by side; paste a min/nom/max row and get the nominal; a common pitch table; and an imperial vs metric chip size table so “0603” never means the wrong part.

How to use it

1. Type in any box and the rest update.
2. Paste a datasheet row to get the nominal.
3. Check chip sizes against the imperial/metric table.

Proof it works

• Mils typed as millimeters get a warning PASS

On your machine

The words in this tool follow the machine you pick: “nozzle” or “tool”, “feeder”, “intelligent feeder” or “Agilis feeder”.

• ASM SIPLACE
• FUJI
• Yamaha
• Panasonic
• Juki
• Europlacer
• Hanwha
• Universal Instruments
• Mycronic
• Other / desktop

Part categories it helps with

• Chips
• SOIC / TSSOP
• QFN / DFN / LGA

Other features

• Machine picker
• QFN decoder
• Parts library
• Scan and capture
• Kitting list from the BOM
• Load check
• MSL floor-life timers and bake times
• Mispick log
• Shift handoff note
• Machine setup sheet
• Team file and sharing
• Job setup checklist
• Rotation helper
• Tape, feeders and ordering
• Tips from the floor
