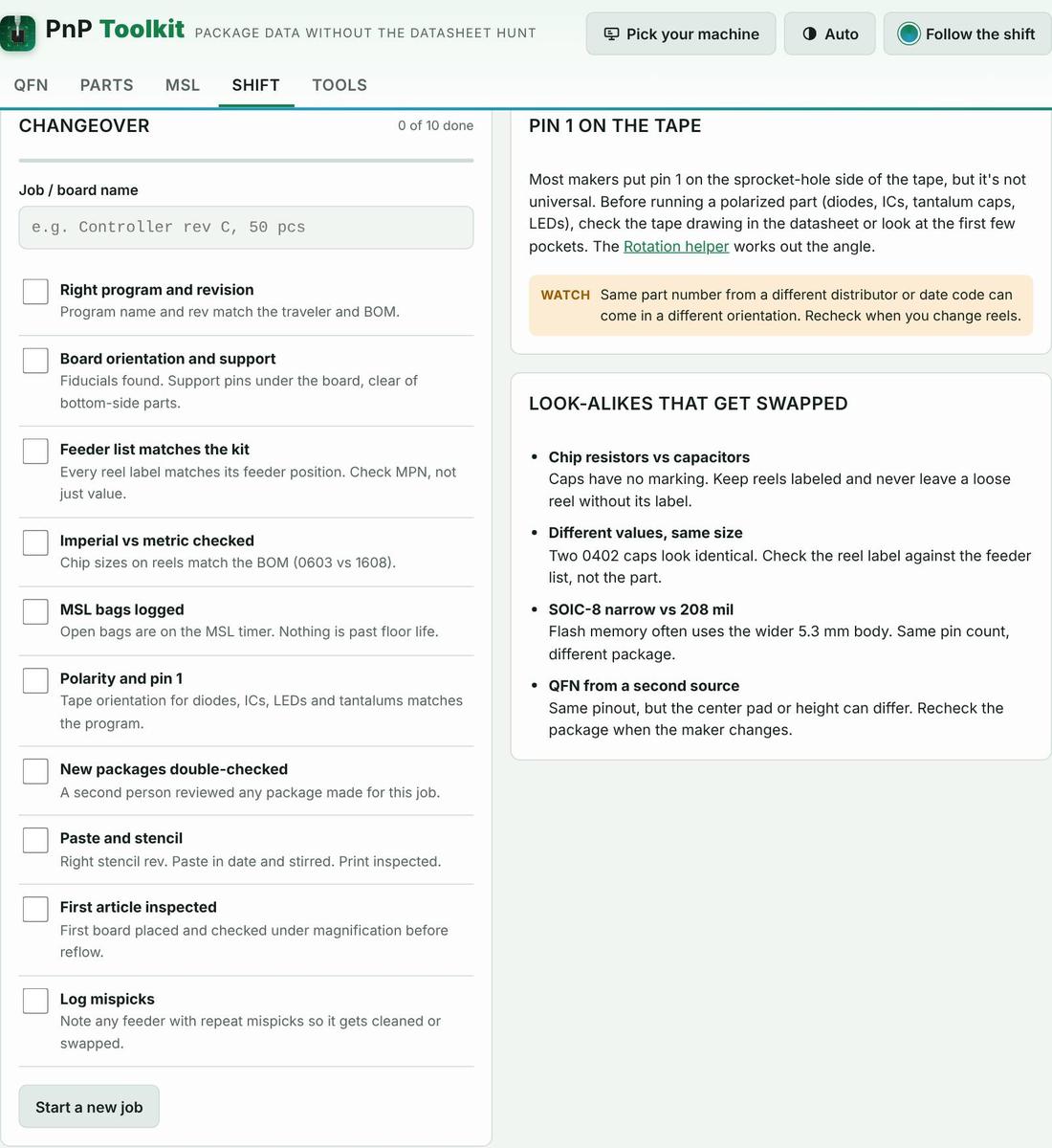

Job setup checklist

Ten checks to tap through before every new job or changeover: program revision, board support, feeder list, imperial vs metric, MSL bags, polarity, new packages, paste and stencil, first article, and mispicks.

How to use it

1. Open the checklist at changeover.
2. Tick each check as it is done.
3. Start a new job to reset it.

On your machine

The words in this tool follow the machine you pick: “nozzle” or “tool”, “feeder”, “intelligent feeder” or “Agilis feeder”.

• ASM SIPLACE
• FUJI
• Yamaha
• Panasonic
• Juki
• Europlacer
• Hanwha
• Universal Instruments
• Mycronic
• Other / desktop

Part categories it helps with

• Tantalum / Alu / LED
• Diodes
• Chips

Other features

• Machine picker
• QFN decoder
• Parts library
• Scan and capture
• Kitting list from the BOM
• Load check
• MSL floor-life timers and bake times
• Mispick log
• Shift handoff note
• Machine setup sheet
• Team file and sharing
• Rotation helper
• Unit converters and size codes
• Tape, feeders and ordering
• Tips from the floor
